Use LINQ To SQL On Web Form

Here are the steps,

Create an Empty Web Form Application with C#.
Switch ON server explorer: By default Its ON and Visible at toolbox side on, if not then CTRL+W, L.

Add caption

3. Select Add connection to database or create a new SQL Server database from Server Explorer.

4. Create a DBML file that is LINQ to SQL File.

5. Double click on DBML. I have given the following file name: MemberCDAC_DataClasses.DBML

6. Drag and Drop tblMembers on MemberCDAC_Database.DBML from Server Explorer

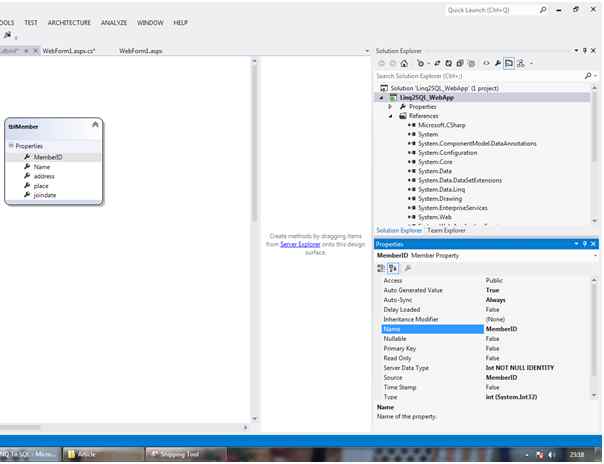

7. Click on MemberID column of tblMember and check property window for detail.

Access: Public and Auto Generated Value : True.

You can set setting in property window. If any changes in table, then again drag n drop or update

manually. Personally, I suggest delete table link from DBML and again drag and drop.

8. When you configure server connection, drag and drop table into DBML canvas then system will automatically add connection string in WEB.CONFIG file.

9. Web.Config file contains the following: I have used WINDOWS authentication connectionstrings.

</system.web>
</configuration>

For explaining LINQ 2 SQL, I have used a webform with the following controls as in the following:

==================
Here's the aspx page Code.

==================

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Linq2SQL_WebApp.WebForm1" %>
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">

<head runat="server">
<title>Member Entry</title>
<style type="text/css">
.auto-style1 {}

.auto-style2 {
width: 141px;
height: 23px;
}

.auto-style3 {
height: 23px;
}
</style>
</head>

<body>
<form id="form1" runat="server">
<div>
<table style="width: 100%;">
<tr>
<td class="auto-style1">Member ID</td>
<td>
<asp:Label ID="lblMemberID" runat="server" Text="[MemberID]"></asp:Label>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Name</td>
<td>
<asp:TextBox ID="txtName" runat="server" Width="265px"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Address</td>
<td>
<asp:TextBox ID="txtAddress" runat="server" Height="167px" TextMode="MultiLine" Width="265px"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Place</td>
<td>
<asp:TextBox ID="txtPlace" runat="server"></asp:TextBox>
</td>
<td> </td>
</tr>
<tr>
<td class="auto-style1">Join Date</td>
<td>
<asp:TextBox ID="txtJoinDate" runat="server"></asp:TextBox> [Format : dd/mm/yyyy] </td>
<td> </td>
</tr>
<tr>
<td class="auto-style2"></td>
<td class="auto-style3"></td>
<td class="auto-style3"></td>
</tr>
<tr>
<td class="auto-style1" colspan="3" style="text-align: left; padding-left: 150px">
<asp:Button ID="btnSave" runat="server" Text="Save" OnClick="btnSave_Click" Width="150px" /> </td>
</tr>
<tr>
<td class="auto-style1"> </td>
<td> </td>
<td> </td>
</tr>
<tr>
<td class="auto-style1"> </td>
<td> </td>
<td> </td>
</tr>
<tr>
<td class="auto-style1" colspan="3">
<asp:GridView ID="GridView1" runat="server" Width="100%" AutoGenerateSelectButton="False" BackColor="#DEBA84" BorderColor="#DEBA84" BorderStyle="None" BorderWidth="1px" CellPadding="3" CellSpacing="2" AutoGenerateColumns="False" OnRowCommand="GridView1_RowCommand" OnRowDataBound="GridView1_RowDataBound" OnSelectedIndexChanged="GridView1_SelectedIndexChanged">
<FooterStyle BackColor="#F7DFB5" ForeColor="#8C4510" />
<HeaderStyle BackColor="#A55129" Font-Bold="True" ForeColor="White" />
<PagerStyle ForeColor="#8C4510" HorizontalAlign="Center" />
<RowStyle BackColor="#FFF7E7" ForeColor="#8C4510" />
<SelectedRowStyle BackColor="#738A9C" Font-Bold="True" ForeColor="White" />
<SortedAscendingCellStyle BackColor="#FFF1D4" />
<SortedAscendingHeaderStyle BackColor="#B95C30" />
<SortedDescendingCellStyle BackColor="#F1E5CE" />
<SortedDescendingHeaderStyle BackColor="#93451F" />
<Columns>
<asp:TemplateField ShowHeader="False" ItemStyle-Width="50px">
<ItemTemplate>
<asp:LinkButton ID="btnSelect" runat="server" CausesValidation="false" CommandName="Select" Text="Select" /> </ItemTemplate>
</asp:TemplateField>
<asp:BoundField DataField="MemberID" HeaderText="Member ID" ItemStyle-Width="20px">
<ItemStyle Width="20px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="Name" HeaderText="Member Name" ItemStyle-Width="300px">
<ItemStyle Width="200px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="Address" HeaderText="Address" ItemStyle-Width="500px">
<ItemStyle Width="350px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="Place" HeaderText="Place" ItemStyle-Width="100px">
<ItemStyle Width="100px"></ItemStyle>
</asp:BoundField>
<asp:BoundField DataField="JoinDate" DataFormatString="{0:dd/MM/yyyy}" HeaderText="Join Date" ItemStyle-Width="100px">
<ItemStyle Width="100px"></ItemStyle>
</asp:BoundField>
<asp:TemplateField ShowHeader="False" ItemStyle-Width="50px">
<ItemTemplate>
<asp:LinkButton ID="btnNew" runat="server" CausesValidation="false" CommandName="NewMember" Text="New" /> </ItemTemplate>
</asp:TemplateField>
<asp:TemplateField ShowHeader="False" ItemStyle-Width="50px">
<ItemTemplate>
<asp:LinkButton ID="btnDelete" runat="server" CausesValidation="false" CommandName="DeleteMember" Text="Delete" CommandArgument='<%# Container.DataItemIndex %>' /> </ItemTemplate>
</asp:TemplateField>
</Columns>
</asp:GridView>
</td>
</tr>
</table>
</div>
</form>
</body>

</html>

============
Controls I have used:

============

----------------------------------------------------------------------------------------

Control Type Control Used Description

----------------------------------------------------------------------------------------

Label lblMemberID Member ID display from table.

TextBox txtName Get and Set Member Name.

TextBox txtAddress Get and Set Member Address.

Change Following Property:

TextMode : MultiLine

TextBox txtPlace Get and Set Member Place.

TextBox txtJoinDate Get and Set Member Join Date.

Button btnSave Dynamically used and rename this

button for

Save : An new entry saved in table.

Update : For update existing entry.

GridView GridView1 GridView to display records and

functional button for Select, New

and Delete activities.

----------------------------------------------------------------------------------------

The following LINQ 2 SQL queries used:

var db = new MemberCDAC_DataClassesDataContext();

db is instance created of MemberCDAC_DataClassesDataContext.

db take care of Select, Insert and Update and Delete activities.

TYPE OF QUERY	Query Text	USED IN EVENT	DESCRIPTION
Select Query – Style 1	from a in db.tblMembers select a).ToList();	( Created a BindGridView() method, which used for loand and refresh data from table.	GridView1.DataSource = (from a in db.tblMembers select a).ToList(); GridView1.DataBind(); GridView used this query directly as datasource.
Select Query – Style 2	db.tblMembers.ToList();	Created a BindGridView() method, which used for loand and refresh data from table.	GridView1.DataSource = db.tblMembers.ToList(); GridView1.DataBind();
Save Query	//Insert new record in tblmembers db.tblMembers.InsertOnSubmit(NewMember); //Update table db.SubmitChanges();	btnSave_Click	Syntax: db.TableName.InsertOnSubmit(Class Object) Example: db.tblMembers.InsertOnSubmit(NewMember); above command insert a new row in table. db.SubmitChanges(); This will save and update table.
Update Query	int SelectMemberID = Convert.ToInt16(lblMemberID.Text); var NewMember = (from a in db.tblMembers where a.MemberID == Convert.ToInt16(lblMemberID.Text) select a ).FirstOrDefault(); NewMember.Name = txtName.Text; NewMember.address =txtAddress.Text; NewMember.place = txtPlace.Text; NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture); //Update table db.SubmitChanges();	btnSave_Click	Syntax: For update command , first we have to create filled instance of Member object , then update current value from control like TextBox etc... var NewMember = (from a in db.tblMembers where a.MemberID == Convert.ToInt16(lblMemberID.Text) select a ).FirstOrDefault(); NewMember.Name = txtName.Text; db.SubmitChanges(); This will delete record from table.
Delete Query	db.tblMembers.DeleteOnSubmit(MemberDetail); db.SubmitChanges();	GridView1_RowCommand	Syntax: db.TableName.DeleteOnSubmit(Class Object) Example: db.tblMembers.DeleteOnSubmit(NewMember); above command will mark a delete row in table. db.SubmitChanges(); This will delete record from table.

db.SubmitChanges(): This command required to execute on after activity like Insert, Update, Delete.

Recap Linq To SQL queries:

Fetching All Members Records

(from a in db.tblMembers select a).ToList();

Fetching a Particular Member Record

(from a in db.tblMembers where a.MemberID == TMemberID select a).FirstOrDefault();

Insert Query

//Insert Blank Row in Table
db.tblMembers.InsertOnSubmit(NewMember);

//Update table
db.SubmitChanges();

=======================================

Note: NewMember : Filled Class object with Datas.

=======================================

Update Query

Firstly, you have to create object of member.

Var NewMember = (from a in db.tblMembers where a.MemberID == TMemberID select a)

.FirstOrDefault();

NewMember.Name = txtName.Text;

NewMember.address = txtAddress.Text;

NewMember.place = txtPlace.Text;

NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture);

//Update table
db.SubmitChanges();

Delete Query

db.tblMembers.DeleteOnSubmit(MemberDetail);

db.SubmitChanges();

===========================

Code Behind File for Your Reference
===========================

using System;
using System.Collections.Generic;
using System.Globalization;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace Linq2SQL_WebApp
{
  public partial class WebForm1: System.Web.UI.Page
{
  protected void Page_Load(object sender, EventArgs e)
{
BindGridView();
}

  protected void BindGridView()
{
var db = new MemberCDAC_DataClassesDataContext();
  //Using Linq query
GridView1.DataSource = (from a in db.tblMembers select a).ToList();
GridView1.DataBind();
  // OR
  //Direct Using ToList
GridView1.DataSource = db.tblMembers.ToList();
GridView1.DataBind();
}

  protected void btnSave_Click(object sender, EventArgs e)
{
var db = new MemberCDAC_DataClassesDataContext();
  //Save for add new member record in table.
  if (btnSave.Text == "Save")
{
  //create tblmember instance.
tblMember NewMember = new tblMember();
NewMember.Name = txtName.Text;
NewMember.address = txtAddress.Text;
NewMember.place = txtPlace.Text;
NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture);
  //Insert new record in tblmembers
db.tblMembers.InsertOnSubmit(NewMember);
  //Update table
db.SubmitChanges();
  //empty text box value.
ClearTextBoxValue();
}
  //Update for update existing member record in table.
  if (btnSave.Text == "Update")
{
  int SelectMemberID = Convert.ToInt16(lblMemberID.Text);
var NewMember = (from a in db.tblMembers where a.MemberID == Convert.ToInt16(lblMemberID.Text) select a).FirstOrDefault();
NewMember.Name = txtName.Text;
NewMember.address = txtAddress.Text;
NewMember.place = txtPlace.Text;
NewMember.joindate = DateTime.ParseExact(txtJoinDate.Text, "dd/MM/yyyy", CultureInfo.InvariantCulture);
  //Update table
db.SubmitChanges();
btnSave.Text = "Save";
ClearTextBoxValue();
}
  //Refresh gridview after new or update member.
BindGridView();
}
  private void ClearTextBoxValue()
{
lblMemberID.Text = "[MemberID]";
txtName.Text = string.Empty;
txtAddress.Text = string.Empty;
txtPlace.Text = string.Empty;
txtJoinDate.Text = string.Empty;
}

protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
{}

  protected void GridView1_SelectedIndexChanged(object sender, EventArgs e)
{
btnSave.Text = "Update";
var db = new MemberCDAC_DataClassesDataContext();
  //Get MemberID from gridview
  int TMemberID = Convert.ToInt32(GridView1.SelectedRow.Cells[1].Text);
  //Fetch particular member record from table directly with MemberID.
var MemberDetail = (from a in db.tblMembers where a.MemberID == TMemberID select a).FirstOrDefault();
lblMemberID.Text = Convert.ToString(MemberDetail.MemberID);
txtName.Text = MemberDetail.Name;
txtAddress.Text = MemberDetail.address;
txtPlace.Text = MemberDetail.place;
txtJoinDate.Text = Convert.ToDateTime(MemberDetail.joindate).ToString("dd/MM/yyyy");
}
  protected void GridView1_RowCommand(object sender, GridViewCommandEventArgs e)
{
ClearTextBoxValue();
  if (e.CommandName == "NewMember")
{
btnSave.Text = "Save";
ClearTextBoxValue();
txtName.Focus();
}
  if (e.CommandName == "DeleteMember")
{
  int CurrentRowIndex = Convert.ToInt32(e.CommandArgument);
GridViewRow gvRow = GridView1.Rows[CurrentRowIndex];
var db = new MemberCDAC_DataClassesDataContext();
  //Get MemberID from gridview
  int TMemberID = Convert.ToInt32(gvRow.Cells[1].Text);
  //Fetch particular member record from table directly with MemberID.
var MemberDetail = (from a in db.tblMembers where a.MemberID == TMemberID select a).FirstOrDefault();
db.tblMembers.DeleteOnSubmit(MemberDetail);
db.SubmitChanges();
txtName.Focus();
BindGridView();
}
}
}
}

SQL Table Script for Your Reference

USE [MemberCDAC]
GO
/****** Object:  Table [dbo].[tblMembers]    Script Date: 11/29/2015 20:38:53 ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
CREATE TABLE [dbo].[tblMembers](
[MemberID] [int] IDENTITY(1,1) NOT NULL,
[Name] [nvarchar](50) NULL,
[address] [nvarchar](500) NULL,
[place] [nvarchar](50) NULL,
[joindate] [datetime] NULL,
CONSTRAINT [PK_tblMembers] PRIMARY KEY CLUSTERED
(
[MemberID] ASC
)WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
) ON [PRIMARY]

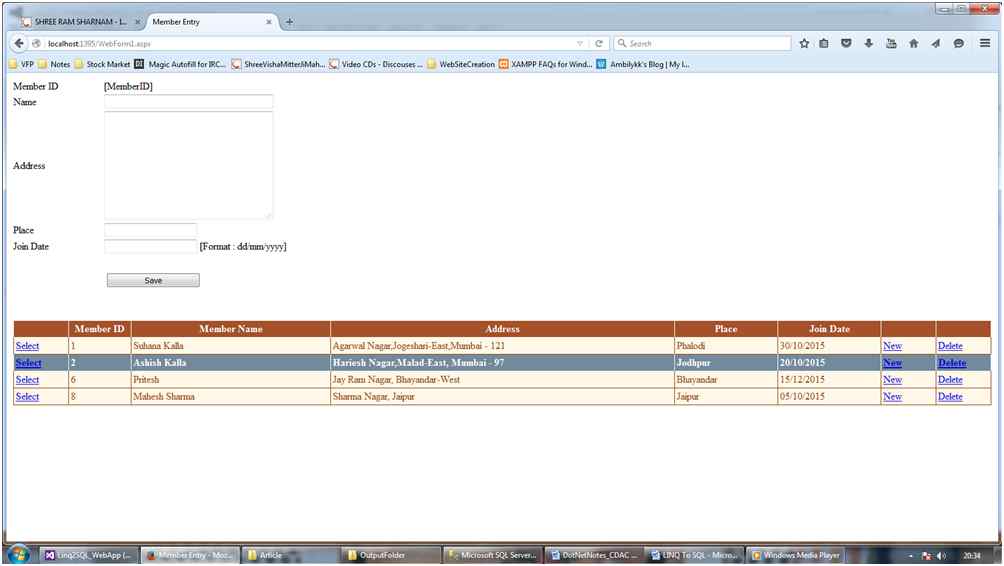

WebApplication View

Happy Coding....
